Fresco-AtomUHD is a high-density multi-screen processor with 18 12G /3G/ HD-SDI inputs, 4 12G /3G/ HD-SDI outputs and 4 HDMI 2.0 Multiviewer outputs in a 1 RU chassis, which is an ideal option for applications with the least space meanwhile requiring the highest quality images.Fresco-Atom relies on its superb image quality, steady embedded OS, low-power consumption, highly compact chassis and great cost performance, suitable for master control room, broadcast control room, studio, mobile control room and other centralized monitoring scenario.

Key features

Robust and compact overall design

● Standard 1RU all-in-one chassis, equipped with redundant power supply, speed regulating fan, ultra-quiet design

● Based on FPGA pure hardware architecture, equipped with embedded ARM system, 7X24 operation with safety and stability

● Front panel equipped with a 1.8’ LCD screen to display host IP, system version, operating temperature, power supply and fan status

● Supports web mode control, web setting parameters for multiple images, layout switching control , source allocation, monitoring, etc

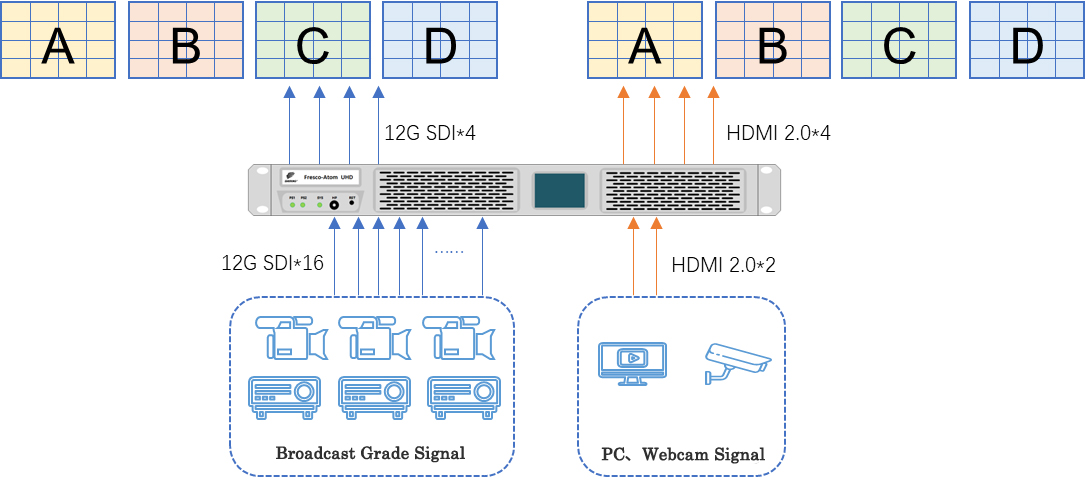

Rich interfaces and functions of signal and control

 Superb image ability

●【Extreme image quality】Advanced motion compensation algorithm is adopted, with high quality for the image, and superior performance in video de-interlacing, noise reduction, enhancement, cross conversion, etc

●【1s delay】The system delay is less than 1 frame ensures accurate switching of live production

●【PC signal monitoring】Supports HDMI access to realize the monitoring of computers, set-top boxes and other signal sources

●【Color gamut conversion】Supports color gamut conversion of input, support BT.2020, BT.709

●【Dynamic range conversion】Supports dynamic range conversion of input signal, support HLG, SDR

●【Rich display elements】 Supports video window, audio VU table, UMD, Tally, SDI embedded time code, safe marker, date, digital/analog clock, signal metadata, forward/countdown, text, custom picture, background selection, alarm box and other display elements

●【Dynamic UMD】Supports UMD source name follow-up (network port and serial port TSL protocol), text editing, color selection function

●【Tally follow】Support 3-color Tally display, dynamic update (network port and serial port TSL protocol, GPI control)

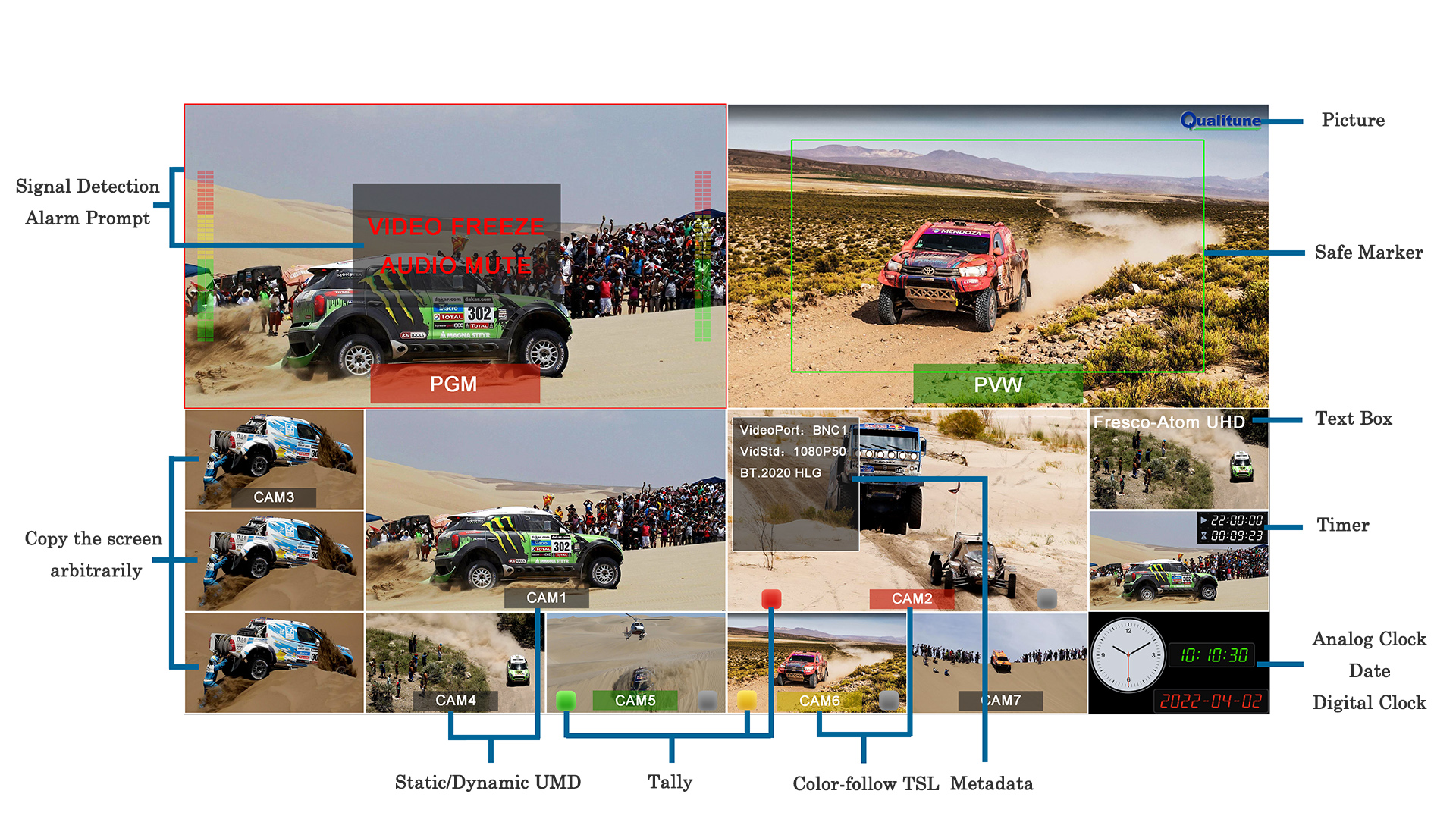

 Rich display elements

 Perfect detection and alarm mechanism

● Signal detection: signal loss, black burst, freeze frame, audio loss, mute and excessive volume, etc

● System detection: abnormal status such as power supply, fan, temperature, etc

● Alarm information is displayed through alarm box and text

● Provide PC-side voice alarm software, multi-screen system through SNMP protocol output alarm information to voice alarm software

● Support alarm prompt through GPO port

Easy-to-use layout editing tools

● Provides layout editing and layout management on the web side

● Supports any position and size of display elements

● Supports copying, alignment, coordinate control of display elements

● Supports different operations of multi-screen layouts, such as saving, importing, downloading, switching, etc.

Rear Panel
